Android Device Automation with Calabash

In this blog post/tutorial I will describe how to write a simple automated test for an android device and get it running on your machine. I will start with a quick crash course explaining the android emulator, how to get it up and running and how to install a native application (in this example instagram). Once the emulator is up and running, we will move onto 'calabash-android', how to install, configure, write and run a simple login test.

Installing and running the Android emulator

First thing is we need to download and extract the latest Android SDK, get it from here and unzip it into your area of choice, I would recommend putting it in your $HOME directory for now.

After you have downloaded and unzipped the SDK, you will need to create an AVD (Android Virtual Device). Do this by changing into the tools directory in the SDK root and running the android create command:

$ cd android-sdk-linux/tools $ ./android create avd -n android4.0 -t 20 -c 256M

If you want an explanation of what exactly the command line options are, then check this documentation from the Android developer site. In a nutshell we are creating an AVD, giving it a name of android4.0 specifying target (type of machine in our case a device with version 4.0 of the OS) and an SD card size for our device of 256M.

We have now created the AVD should now be able to boot it up with the following command:

$ ./emulator -avd android4.0

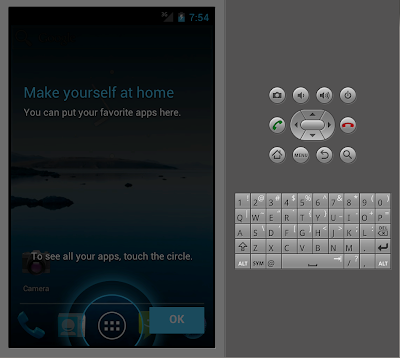

I find first time you issue this command on the AVD, it takes a while too boot just be patient after a while you should see something like this (depending on what you parameter value you used for -t).

At this point feel free to have a little mess around with the device, and get familiar with the controls as detailed here.

Installing an Android app to automate

The next step is to download and install an Android application, for this tutorial we are going to use Instagram, you can download it from here .

Once you have downloaded it you need to install it onto your emulator, the android SDK has a tool called 'abd' that lets you do this, cd into the platform-tools directory and issue the following command:

/android-sdk-linux/platform-tools$ ./adb install Instagram_4.0.2.apk

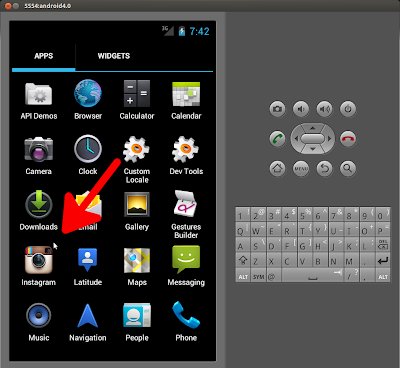

Where the Instragram_4.0.2.apk file is the location of your downloaded Instragram app. After the command has completed the Instagram application will have installed on your emulator and you should be able to see it in your application list:

We are now ready to install calabash and start automating!

Installing Calabash

Running the following gem install command (assuming you have Ruby installed, you haven’t go get RVM here).

 $ sudo gem install calabash-android

This will install the calabash-android gem and command line client, now create a new directory, navigate into it and issue the following command:

$ calabash-android gen

This command sets up your standard Cucumber folders and files, if you look in your directory now, you should see a 'features', 'step_definitions' and a 'support' directory. For now we are only interested in the features directory, navigate into there and you will see a file named 'my_first.feature'. Open it up and replace the contents with the following scenario text:

Feature: Login feature Scenario: As a valid user I can log into my app When I press "Sign In" Then I see "Forgot Password?" When I enter text "pablo" into field with id "username" When I enter text "pablospassword" into field with id "password" When I press "Sign In" Then I see "Follow friends and interesting people to see their photos here"

We are almost ready to run our first test, but before there are a couple things that I allways do to ensure my tests run. We first need to create a keystore file and then re-sign the instragram app so It can be used by calabash. To create the keystore file you will need a JRE tool called 'keytool'. If you have Java installed hopefully it should be in your PATH if not your going to have to hunt down where it is and then run it. Assuming that its in your PATH issue the following command:

$ keytool -genkey -v -keystore debug.keystore -alias androiddebugkey -storepass android -keypass android -keyalg RSA -validity 14000

Then Run:

$ calabash-android resign Instagram_4.0.2.apk

At this point you should be in the new directory you created with the calabash-android gen tool, e.g you should see a features directory. Now run the following command to run the scenario we just created, and watch the emulator:

$ calabash-android run Instagram_4.0.2.apk ADB_DEVICE=android4.0

The Instagram app will be removed and re-installed as part of the run, the application will open, go to the 'Sign In' page and attempt to login with some credentials I have included in the feature file. The tests will fail on the final step for two reasons.

1.  The account details I have used do not exist
2.  There is security on the Instagram app that does not let you Sign in from an emulator, running these on a actual device will solve the issue.

Summary

This post is intended to get you up and running, we have used some 'pre-defined steps' that make up part of the calabash-android implementation, you can view more of these 'canned' steps by navigating into the directory of where your calabash-android gem lives and viewing files in the gems 'lib' directory. There are steps which handle actions and gestures that you may find useful, however you will need to delve into the actual API to get the best from the tool.

In the coming weeks I intend to do a similair guide for calabash-ios and how to write page models using calabash, in the meantime check the following links to help you get more from the tool:

• API Documentation
• Documentation of canned/pre-defined steps
• Documentation on calabash locators

FT.COM Cross Site Scripting Example

I have been working with a number of client web applications, and it surprised me how many of them are/have been open to XSS to the point I'm actually worried.

My guess is that testers don't really understand what XSS is, how to exploit it and what risk it poses to the business, so I will try and give you a working example using the ft.com. They are not a client of mine but I did find their search was open to the XSS exploit. Don't worry I have contacted and reported the issue to them, so by the time you read this the site will be patched and immune to any sort of XSS bug.

Lets get started:

1. First lets find an input into the webserver, ft.com has a search form field we may be able to exploit.

2. We want to enter some malicious text into the search field, for example script tags to see if they break the page. First lets do a normal search and analyse how the page is returned, type 'Lenovo' into the search field and click search, after a short wait the results are returned:

A few things happen, the most obvious is that results are displayed, we can remove the search term and the page is not broken in anyway. Also look at the url you can see that there is a url parameter "http://search.ft.com/search?queryText=lenovo". Now lets see how the XSS exploit works.

3. The easiest way to see if the site is open to XSS is to enter a script tag into the search field. This normally takes trial and error to get the result you want, you may need to enter part of a tag  like "script>", or encoded text "%3C%2Fscript%3E" its just about having a play and learning how the application responds. For the ft.com search box I found a closing script tag </script> broke the page:

You can see some JavaScript being output just above the search results. A quick look at the markup in firebug and we can see where the script tag has been inserted, escaping some JavaScript code. Lets now do something really simple and say hello to the world using this code:

http://search.ft.com/search?queryText=)</script><a href="https://www.maltapersonaltraining.com">hello from pablo testerbar</a><script>

With a little more effort we can modify the page further, include some css and javascript on another server, add more mark-up, this really depends on how creative/malicious the attacker/hacker wants to be. Look at the url in the address bar, the attacker could now send this modified url out to unsuspecting victims (hiding the verboseness via something like tinyurl), and as its hosted by a reputable organisation the user maybe duped into thinking the content is legitimate.

I hope this gives you a quick and simple example of how an XSS attack works. My recommendation is that all testers should include this type of testing as part of their standard testing routine.

Useful links:

• Url Encoder - Does exactly what it says on the tin, quick way to encode/decode your text
• Another XSS example - An excellent write up on XSS using the Gaurdian website, gives you another example and well worth a read.
